Ground Positions Explained

Ground Positions Explained

We get a lot of questions about GROUND POSITIONS of our IEC309 Pin and Sleeve Power Connectors.  We thought it might be helpful if we gave you an easy explanation as follows;

  1. Ground pin location is specified for the Female Connector.
  2. Ground pin location is referenced to the hour position on a clock
  3. The keyway is ALWAYS at the 6 o'clock position.

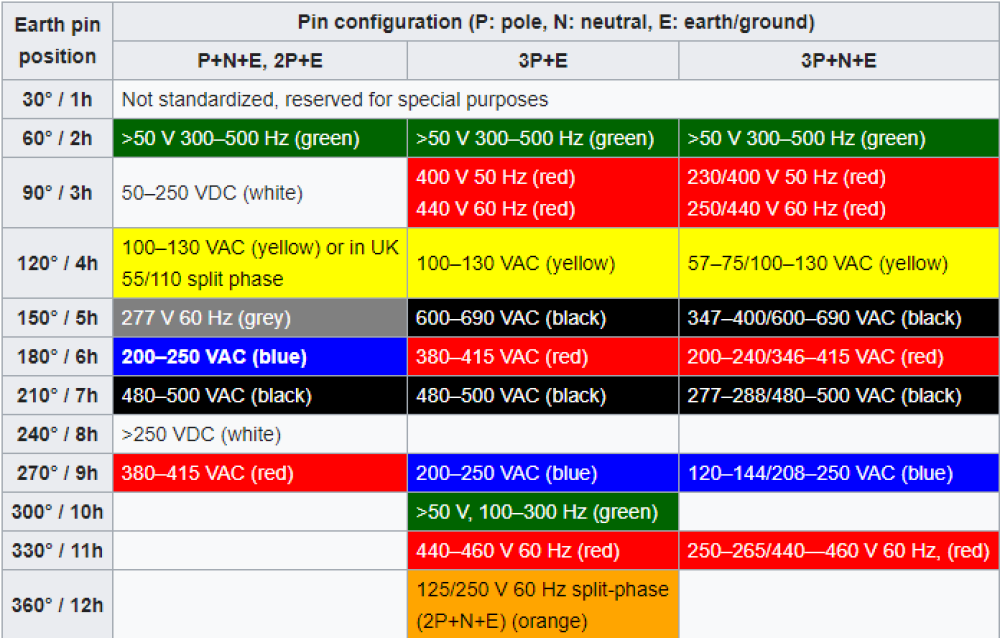

  4. Colours represent Voltage
